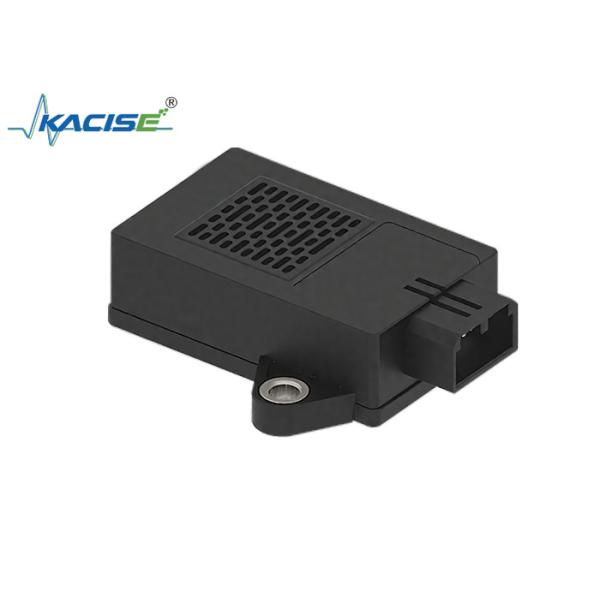

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319

Name: Battery Thermal Runaway Monitoring Sensor KGD ATRS 319
Brand: KACISE
Price: 1 USD

Brand Name : KACISE

Model Number : KGD-ATRS-319

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Data Refresh : ≤1s

Response Time : T90 < 15s

Output Mode : CAN/LIN/UART/analog voltage

Operating Conditions : -40°C - +85°C; 0 - 90%RH (non - condensing)

Storage Conditions : -40°C - 110°C; 0 - 99%RH (non - condensing)

Supply Voltage : 9 - 16VDC, standard voltage +12VDC

Contact Now

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319

Product Introduction

The battery thermal runaway monitoring sensor KGD - ATRS - 319 can effectively monitor indicators such as CO₂+CO, temperature, and pressure released before battery thermal runaway is triggered, and transmit the measurement signals to the BMS through CAN communication. This solution has significant characteristics such as accurate measurement, fast response time, less cross - interference, low power consumption, and long service life.

Product Features

For CO₂ measurement, Non - Dispersive Infrared (NDIR) spectroscopy absorption technology is adopted. In the measurement range of 0 - 10000ppm, the accuracy can reach ±(50ppm + 5% of the reading); the response time is fast with T90 < 15s, there is no gas cross - interference, the ultra - low power consumption mode can reach μA level, and the service life can reach 15 years.
For CO measurement, a self - designed MEMS production line is used to produce metal oxide semiconductor MOX sensors. Electronic nose technology is adopted to screen for good selectivity for CO gas, with little influence from temperature and humidity, and stable detection signals. Meanwhile, it can expand the detection of various other gases according to the manufacturer's research results on thermal runaway; the service life of the semiconductor CO sensor exceeds 15 years, and it has corrosion resistance to silicone gases.
The MEMS MOX sensor for CO measurement has little influence from temperature and humidity, stable detection signals, and can expand the detection of various gases; its service life exceeds 15 years, and it has good corrosion resistance to silicone gases.
The module adopts a vehicle - grade mature circuit design and can adapt to harsh vehicle - mounted environments.
CAN real - time communication, with a protection level up to IP65.

Technical Parameters

Items	Details
Detection Principle	CO₂: Dual Beam NDIR (Non - Dispersive Infrared) spectroscopy absorption technology
	CO: Metal Oxide Semiconductor (MOX) gas detection technology
	Pressure: Piezoresistive type
	Temperature: Negative Temperature Coefficient (NTC) thermistor
Detection Parameters	CO₂, CO, temperature, pressure (CH₄ + H₂ can be extended and customized)
Detection Range	CO₂: 0ppm - 10000ppm
	CO: 1 - 1000ppm
	Air pressure: 80kPa - 120kPa
	Temperature: -40°C - 125°C
Resolution	1ppm
Detection Accuracy	CO₂: ±(50ppm + 5% of the reading)
	CO: ±40ppm or ±30% of the reading (take the larger value)
	Pressure: ±1kPa
	Temperature: ±2°C
Data Refresh	≤1s
Response Time	T90 < 15s
Output Mode	CAN/LIN/UART/analog voltage
Operating Conditions	-40°C - +85°C; 0 - 90%RH (non - condensing)
Storage Conditions	-40°C - 110°C; 0 - 99%RH (non - condensing)
Supply Voltage	9 - 16VDC, standard voltage +12VDC
Average Operating Current	≤100mA, @+12VDC (can activate low - power mode, supporting 24 - hour online monitoring)
Standby Current	≤100μA, sleep mode

Product Tags:

Battery Thermal Runaway Monitoring Sensor

Monitoring Sensor KGD - ATRS - 319

Battery Thermal Runaway Monitoring Sensor KGD - ATRS - 319 Images
