PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

  • 1
  • 2

Brand Name : KACISE

Model Number : KTS100

Certification : CE

Place of Origin : CHINA

MOQ : 1PCS

Supply Ability : 1000 Piece/Pieces per Week negotiable

Delivery Time : 5-8 work days

Packaging Details : each unit has individual box and all boxes are packed in standard packages or customers requests available

Measurement Range : -55～1200℃

Accuracy : ±0.5%（typical） ±1%（Max.）

Long term stability : ±1.0%F.S/year

Power supply : 15～30VDC

Output signal : 4～20mA 0/1～5/10VDC

Pressure port : M27×2 or customize

Housing material : 1Cr18Ni9Ti stainless steel

Cable : polyethylene

Protection : IP65

Contact Now

PT100 Temperature Transmitter

Introduction
KTS100 temperature transmitter uses specialized temperature module, it can do the linearity correction for the most kinds of thermocouple and thermal resistance, then output the standard analogue signal.It has high reliability and stability.

Feature

  • Wide measurement range
  • Full stainless steel
  • Protection:IP65
  • Various output signal.
  • ExiaIICT6 optional

Application

  • For the temperature measuring of the gas and liquid that can be compatible with 316L.
  • Petroleum industry, chemical industry, metallurgy industry, electric power, hydrology etc.

Dimension ( customized optional)

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel

Parameter

Measurement Range

-55～1200℃

Accuracy

±0.5%(typical) ±1%(Max.)

Long term stability

±1.0%F.S/year

Power supply

15～30VDC

Output signal

4～20mA 0/1～5/10VDC

Pressure port

M27×2 or customize

Housing material

1Cr18Ni9Ti stainless steel

Cable

polyethylene

Protection

IP65



Product Tags:

PT100 temperature transmitter stainless steel



IP65 temperature transmitter -55～1200℃



precision PT100 transmitter with warranty


Wholesale PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel from china suppliers

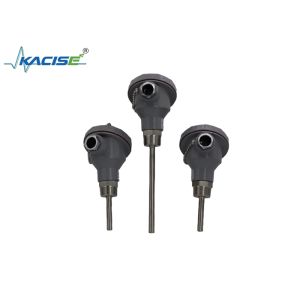

PT100 Temperature Transmitter -55～1200℃ IP65 Stainless Steel Images
